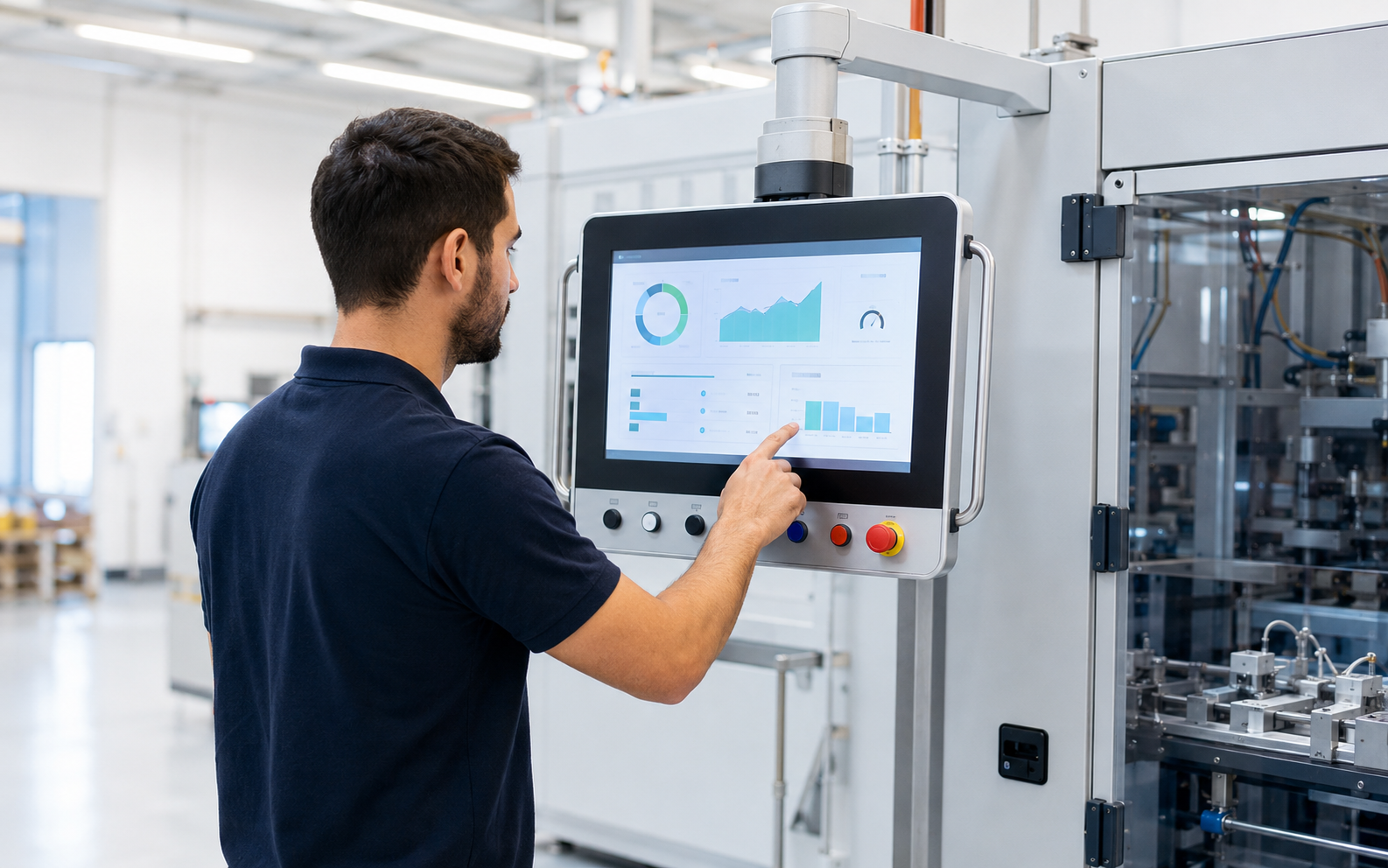

The RK3568 platform drives upgraded terminal interaction and device connectivity. The 10.1-inch capacitive touchscreen suits self-service terminals, smart lockers and industrial control panels that need touch interaction, serial connectivity and dual Gigabit networking — upgrading conventional equipment from single-function control to a digital terminal with visual touch control and networked management.
| Common Requirements / Pain Points | Conventional equipment still relies on buttons or simple displays, with a weak interaction experience | The project needs to connect control boards, sensors, barcode scanners and many other peripherals | The site needs more stable data access and network communication | The project involves industrial buses or digital I/O control |
|---|---|---|---|---|
| How the MDC-10710P solves it | 10.1-inch capacitive touchscreen + Android 11 / Linux | RS232×2, RS485×2, USB 2.0×3, USB 3.0×1, USB OTG×1, 12-channel GPIO | Dual Gigabit auto-sensing RJ45, Wi-Fi & BT, optional 4G | Built-in 2x CAN and 12-channel GPIO (including SPI / IIC / ADC) |
| Customer Value | Rapid upgrade to a visual touch terminal, improving operational efficiency and the equipment image | Fewer external adapter modules, making development and commissioning easier | Wired, wireless and mobile networking options are easier to match to each project | Connect bus and digital I/O devices without extra expansion boards |
| Model | MDC-10710P-L01 |
|---|---|
| Configuration | LPDDR4 2 GB / eMMC 16 GB |
| Screen Brightness | 300 cd/m² |
| Interfaces | RS232×2, RS485×2, CAN×2 USB×4, USB OTG×1 |
| Part Number | MDC-10710P |
|---|---|
| CPU | RK3568, quad-core 64-bit Cortex-A55, up to 2.0 GHz, NPU 1.0 TOPS |
| Configuration | DDR: onboard 2 GB LPDDR4, expandable to 4 GB / 8 GB eMMC: onboard 16 GB, expandable to 32 GB / 64 GB / 256 GB |
| Operating System | Android 11 / Linux |
| Dimensions | 262.3×176.3×40.9 mm |
| Brightness | 300 cd/m² |
| Resolution | 800×1280 |
| Viewing Angle | Full viewing angle |
| Serial Ports | RS232×2, RS485×2 |
| USB | USB 2.0 Type-A ×3, USB 3.0 Type-A ×1, USB OTG Type-C ×1 |
| GPIO | 12-channel GPIO (including SPI, IIC, ADC), 2x CAN |
| Audio | 1x mono MIC / stereo HP, 1x stereo SPK |
| Wired Network | 2x RJ45, 10M/1000Mbps auto-sensing |
| Wireless Network | 2.4 GHz + 5 GHz IEEE 802.11 a/b/g/n/ac 1T1R |
| Bluetooth | BT4.0 |
| SIM Card Slot | 1x SIM card slot |
| TF Card Slot | 1x TF card slot |
| Power Connector | DC 12 V input with reverse-polarity and overcurrent protection |
| Buttons | Recovery & Reset buttons |
| Interface Direction | Serial Communication | USB / OTG | Network Communication | Bus & Expansion | Audio |
|---|---|---|---|---|---|
| Specification Source | RS232×2, RS485×2 | USB 2.0 Type-A ×3, USB 3.0 Type-A ×1, USB OTG ×1 | Dual RJ45 10M/1000Mbps auto-sensing, Wi-Fi & BT, SIM slot, optional 4G | 12-channel GPIO (including SPI / IIC / ADC), 2x CAN, TF card slot, Recovery & Reset buttons | 1x mono MIC / stereo HP, 1x stereo SPK |
| Customer Value | Suitable for control boards, sensors, barcode scanners, card readers, industrial instruments and other serial peripherals. | Covers common peripheral connections, data transfer and debugging maintenance. | Suitable for wired, wireless and mobile deployment, and for dual-network redundancy. | Easy connection of industrial buses, digital I/O control, local storage and maintenance. | Convenient for adding voice prompts and audio interaction. |
| Model | MDC-10710P-L01 |
|---|---|
| Configuration | LPDDR4 2 GB / eMMC 16 GB |
| Screen Brightness | 300 cd/m² |
| Interfaces | RS232×2, RS485×2, CAN×2 USB×4, USB OTG×1 |
| Type | 4G Module | 4G Module | Adapter | External Wi-Fi Antenna | External 4G Antenna |
|---|---|---|---|---|---|
| Part NO. | EC200A-CN | EC200N-CN | Chinese Standard | 2.4 GHz magnetic-mount antenna | 4G magnetic-mount antenna |
| Description | Cat 4, Mini PCIe | Cat 1, Mini PCIe | 12 V / 3 A | 3 m extension cable | 3 m extension cable |
| Pairing Direction | 4G Module / External Antenna | Barcode Scanners / Card Readers | Sensors / Control Boards | External Wi-Fi Antenna / Adapter |
|---|---|---|---|---|
| Suitable Projects | Smart lockers, self-service terminals, sites where cabling is difficult | Self-service, identity verification, locker door control | Industrial equipment, edge data acquisition, smart locker control | Volume deployment, wireless networking, complete-unit delivery |
| Customer Value | Enhances mobile connectivity for more deployment environments | Extends terminal identification, operation and closed-loop business capabilities | Supports device connection via RS232 / RS485 / CAN | Improves wireless deployment flexibility and delivery efficiency |
