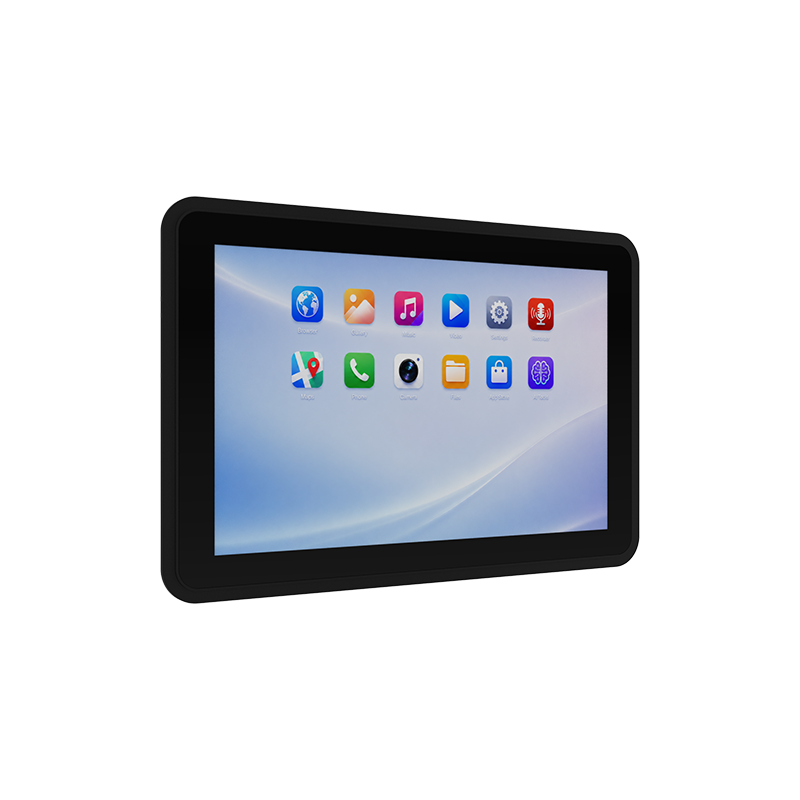

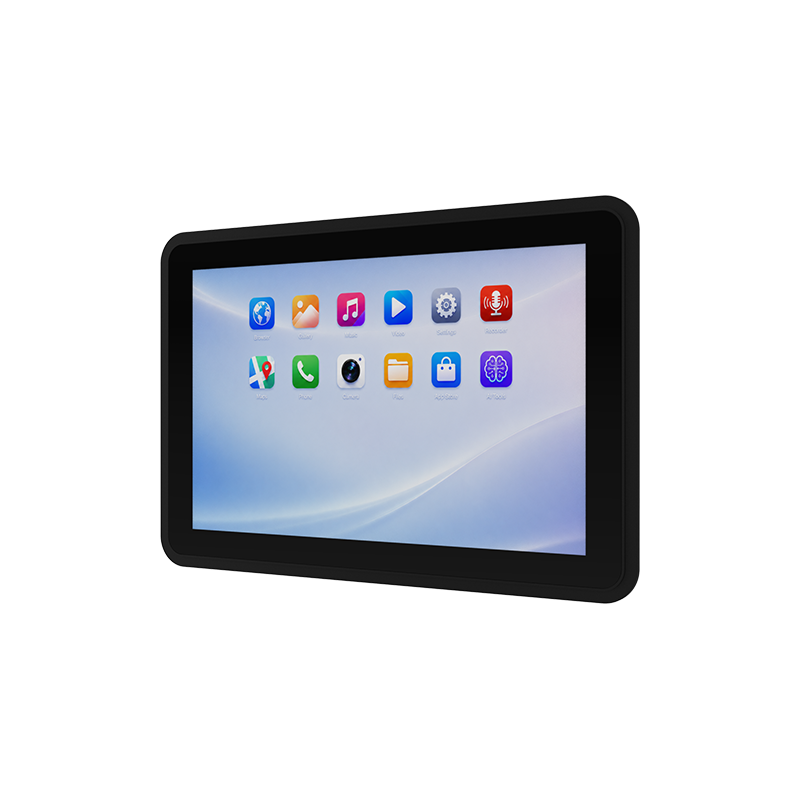

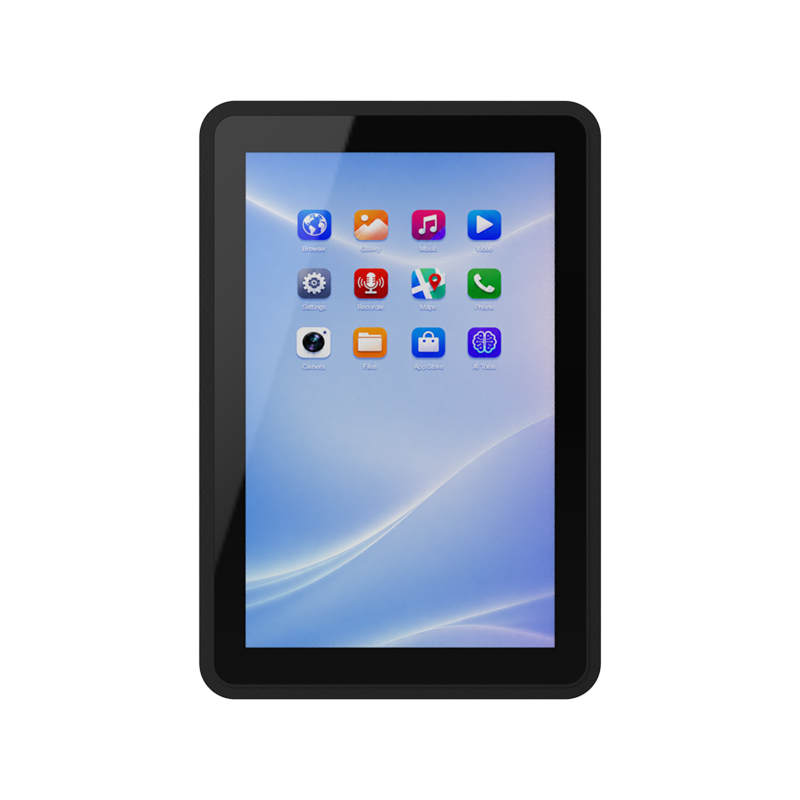

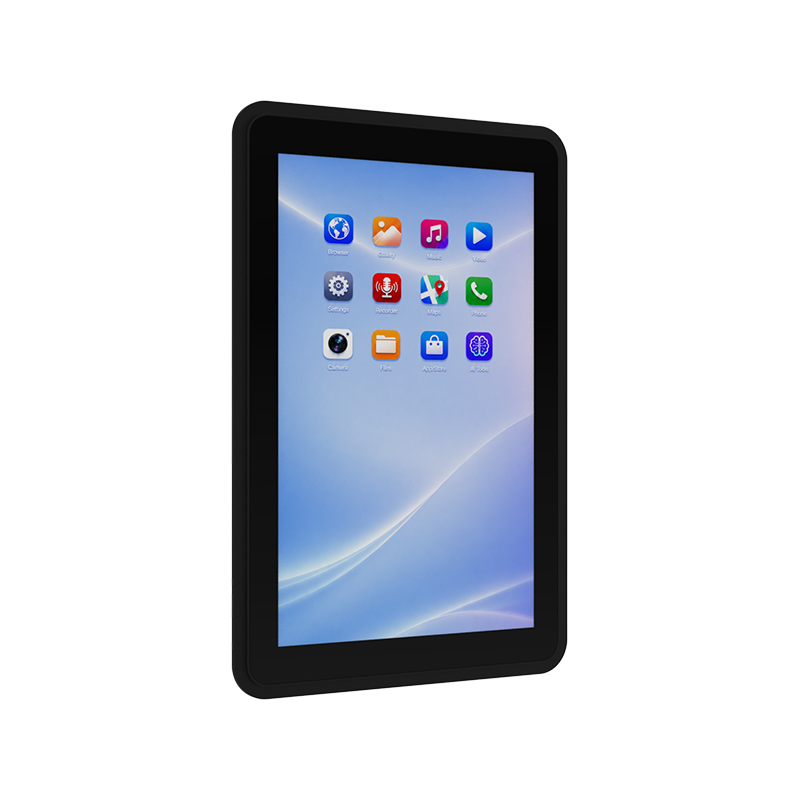

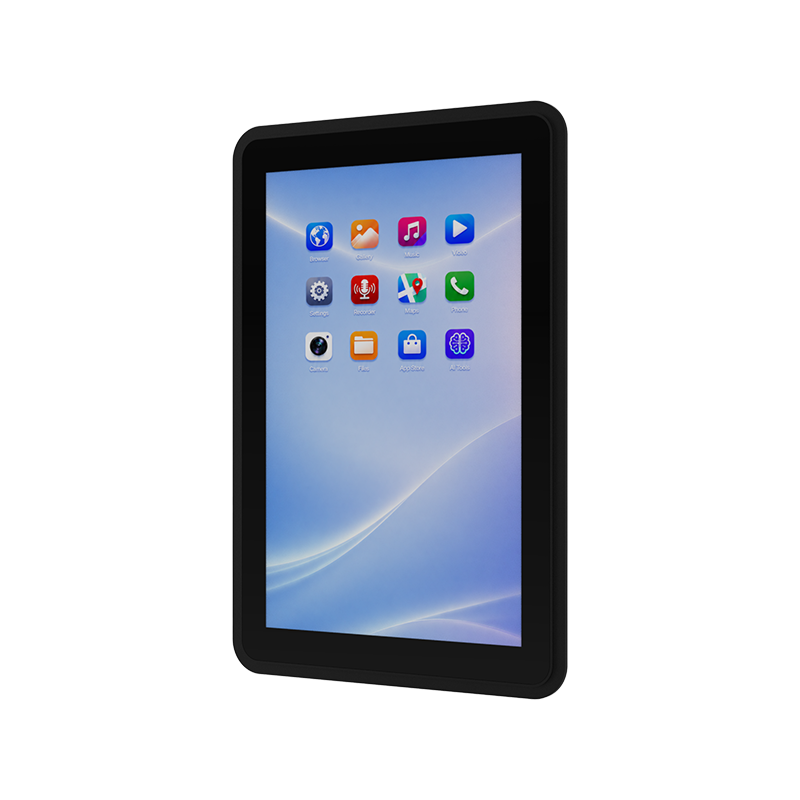

The RK3568 platform with dual Gigabit Ethernet suits self-service and commercial display terminals that need a larger display area. The 15.6-inch full-view capacitive touchscreen with 1920×1080 resolution is ideal for self-service terminals, commercial equipment and industrial control panels requiring HD information display, multi-peripheral connectivity and long-term stable operation — upgrading conventional equipment with HD display, touch interaction and networked management in one step.
| Common Requirements / Pain Points | Conventional equipment offers only buttons or a single display, with a poor interaction experience | The project needs to connect scanners, card readers, printers, control boards and other peripherals | On-site network conditions vary, with both wired and wireless needs | The customer wants the project to land quickly rather than rebuild an entire control system |
|---|---|---|---|---|
| How the MDC-15710P solves it | 15.6-inch FHD capacitive touch all-in-one screen integrating host, system and common interfaces | Provides RS232×2, RS485×2, USB 2.0×3, USB 3.0×1, USB OTG×1 | Dual Gigabit auto-sensing RJ45, Wi-Fi & BT, optional 4G | RK3568 + Android 11 / Linux + integrated multiple interfaces |
| Customer Value | Upgrades equipment from “able to display” to a digital terminal that is interactive, networkable and expandable | Fewer external adapters and repeated integration work, making commissioning more efficient | Suitable for wired, wireless and mobile deployment, and for dual-network redundancy | Shortens hardware evaluation, software adaptation and on-site delivery cycles |
| Model | MDC-15710P-L01 |
|---|---|
| Configuration | DDR 2 GB / eMMC 16 GB |
| Screen Brightness | 350 cd/m² |
| Interfaces | RS232×2, RS485×2, CAN×2 USB×4, USB OTG×1 |
| Part Number | MDC-15710P |
|---|---|
| CPU | RK3568, quad-core 64-bit Cortex-A55, up to 2.0 GHz, NPU 1.0 TOPS |
| Configuration | DDR: onboard 2 GB; eMMC: onboard 16 GB |
| Operating System | Android 11 / Linux |
| Dimensions | 366.93×273.5×42 mm |
| Brightness | 350 cd/m² |
| Resolution | 1920×1080 |
| Viewing Angle | Full viewing angle |
| Serial Ports | RS232×2, RS485×2 |
| USB | USB 2.0 Type-A ×3, USB 3.0 Type-A ×1, USB OTG Type-C ×1 |
| Audio | 1x mono MIC / stereo HP, 1x stereo SPK |
| Wired Network | 2x RJ45, 10M/1000Mbps auto-sensing |
| Wireless Network | 2.4 GHz + 5 GHz IEEE 802.11 a/b/g/n/ac 1T1R |
| Bluetooth | BT4.0 |
| SIM Card Slot | 1x SIM card slot |
| TF Card Slot | 1x TF card slot |
| Power Connector | DC 12 V input with reverse-polarity and overcurrent protection |
| Buttons | Recovery & Reset buttons |
| Interface Direction | Serial Communication | USB / OTG | Network Communication | Audio & Control Expansion |
|---|---|---|---|---|
| Specification Source | RS232×2, RS485×2 | USB 2.0 Type-A ×3, USB 3.0 Type-A ×1, USB OTG ×1 | Dual RJ45 10M/1000Mbps auto-sensing, Wi-Fi & BT, SIM slot, optional 4G | MIC / HP, SPK, TF card slot, Recovery & Reset buttons |
| Customer Value | Suitable for control boards, sensors, barcode scanners and print modules. | Suitable for scanners, readers, debugging and common USB peripherals. | Makes it easy to choose wired, wireless or mobile networking to suit the site. | Convenient for expanding audio interaction, local storage and maintenance. |
| Model | MDC-15710P-L01 |
|---|---|
| Configuration | DDR 2 GB / eMMC 16 GB |
| Screen Brightness | 350 cd/m² |
| Interfaces | RS232×2, RS485×2, CAN×2 USB×4, USB OTG×1 |
| Type | 4G Module | 4G Module | Adapter | External Wi-Fi Antenna | External 4G Antenna |
|---|---|---|---|---|---|
| Part NO. | EC200A-CN | EC200N-CN | Chinese Standard | 2.4 GHz magnetic-mount antenna | 4G magnetic-mount antenna |
| Description | Cat 4, Mini PCIe | Cat 1, Mini PCIe | 12 V / 3 A | 3 m extension cable | 3 m extension cable |
| Pairing Direction | 4G Module / External Antenna | Barcode Scanners / Card Readers | Sensors / Control Boards | External Wi-Fi Antenna / Adapter |
|---|---|---|---|---|
| Suitable Projects | Smart lockers, self-service terminals, sites where cabling is difficult | Self-service, identity verification, locker door control | Industrial equipment, edge data acquisition, smart locker control | Volume deployment, wireless networking, complete-unit delivery |
| Customer Value | Enhances mobile connectivity for more deployment environments | Extends terminal identification, operation and closed-loop business capabilities | Supports device connection via RS232 / RS485 | Improves wireless deployment flexibility and delivery efficiency |
