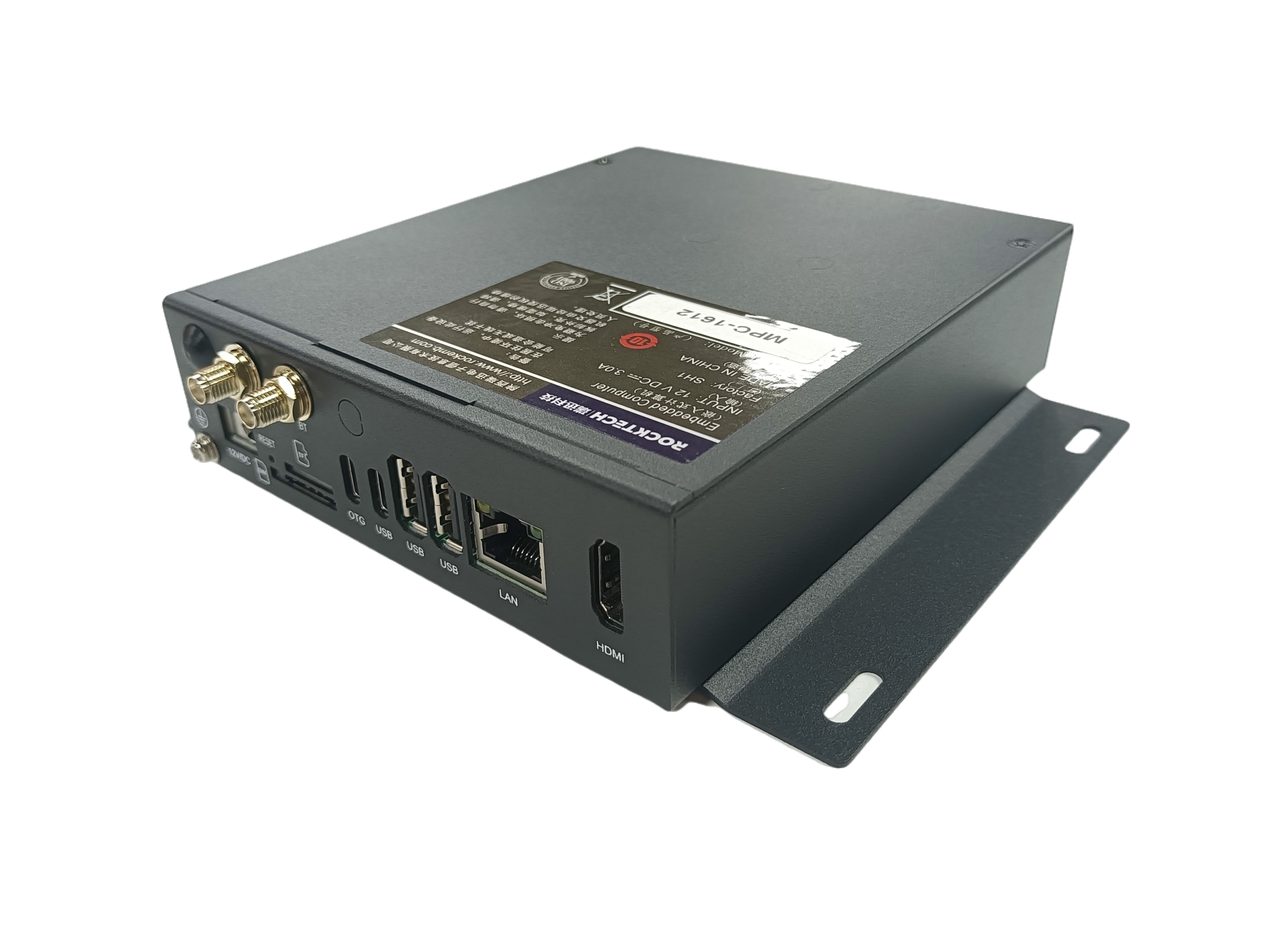

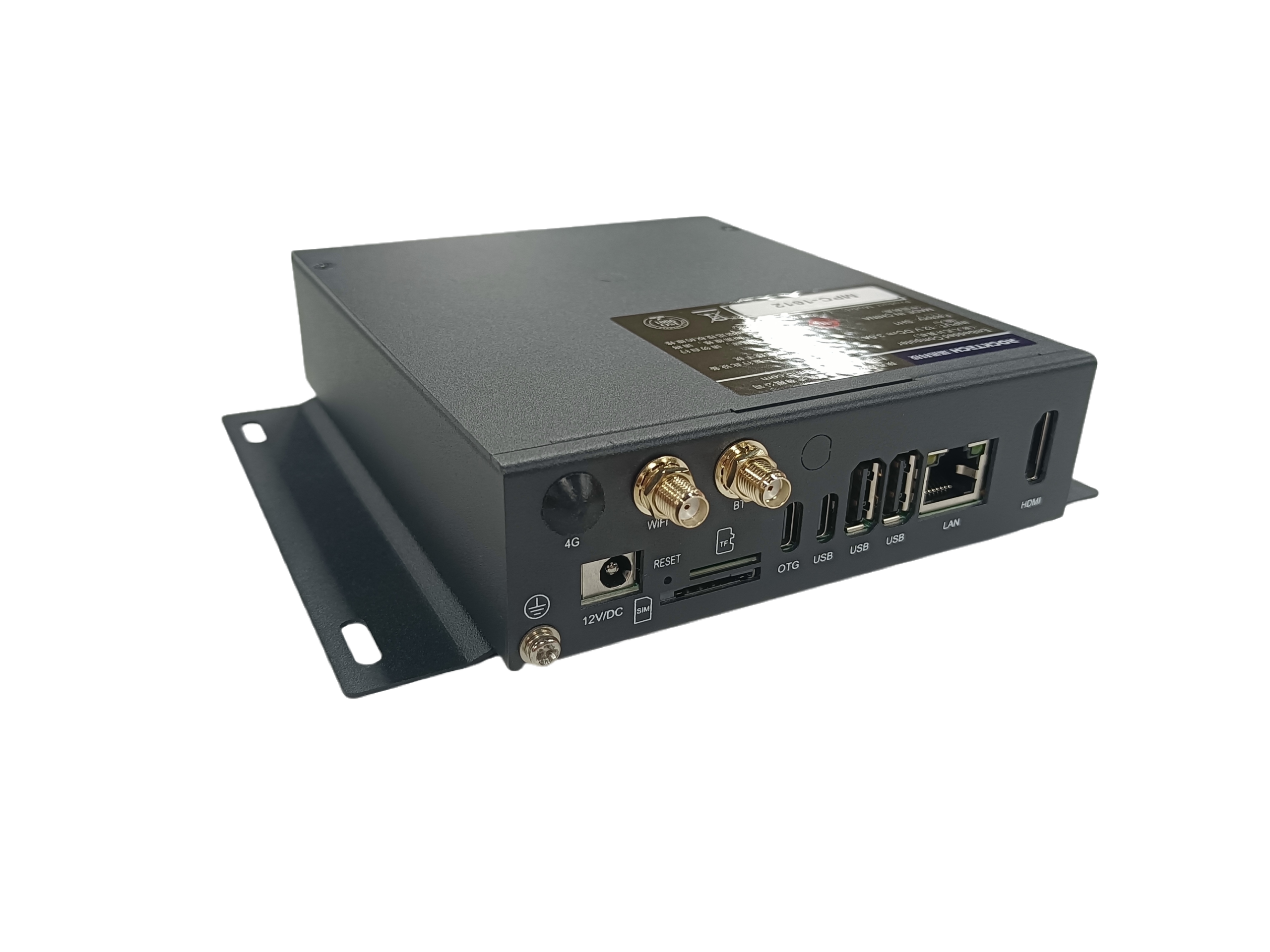

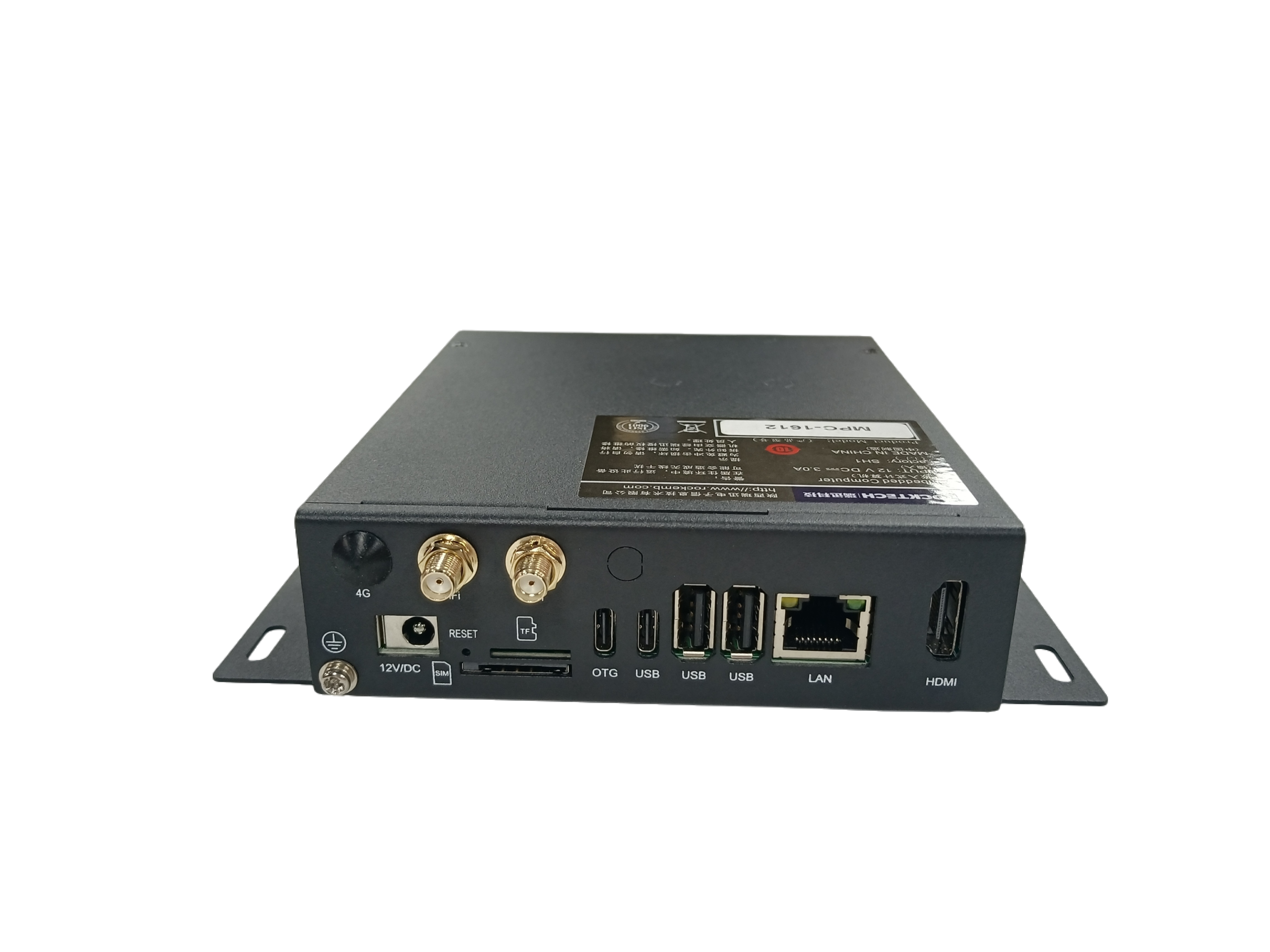

MPC-1612

High-performance AI edge computing box based on MediaTek Genio 700

Powered by the high-performance MediaTek Genio 700 (MT8390) octa-core processor with 4 TOPS of AI computing power, the MPC-1612 delivers a reliable and efficient edge computing platform for next-generation AIoT devices through high-performance computing and a flexible expansion architecture.

AI-driven edge intelligent computing platform

Through high-performance computing and a flexible expansion architecture, it provides a reliable and efficient edge computing platform for next-generation AIoT devices

MediaTek Genio 700 | 4 TOPS AI computing power | Wi-Fi 6 | Android/Linux | PoE expansion supported

Powerful Octa-Core Performance

2 × Cortex-A78 @ 2.2GHz + 6 × Cortex-A55 @ 2.0GHz
Heterogeneous multi-core architecture
Optimised for AIoT and edge computing

4 TOPS AI Computing Power

Built-in AI acceleration engine delivering 4 TOPS of NPU computing power, meeting the AI application needs of smart retail, intelligent security and industrial vision.

High-Speed Wireless Connectivity

Supports PoE expansion deployment, reducing cabling costs and improving installation efficiency

Application Scenarios

Smart Retail

Improves user experience and operational efficiency through AI analytics and digital interaction

Smart Commercial Display

Multi-screen HD audio-visual experience and personalised precision marketing

Industrial HMI

Enables equipment monitoring, production management and industrial automation control

AI Edge Vision

Supports real-time image processing and edge inference applications

Specifications

Processor	CPU	MT8390(Genio 700) 2xA78@2.2GHz+6xA55@2.0GHz NUP 4.0TOPS
LPDDR5	Technology	Onboard 8 GB LPDDR4X
eMMC	Form Factor	Onboard 64 GB eMMC, 1x TF card slot
Display	Interfaces	HDMI Type-A
Interfaces	USB	1x Type-C OTG, 2x USB 3.0 Type-A 1x Type C USB3.0
Communication	CAN	2*CAN (optional)
	LTE	1x Mini PCIe, 1x standard SIM card slot
	LAN	1x 10M/100/1000Mbps RJ45 port (PoE expansion supported)
	WiFi&BT	WiFi6 2T2R+BT5.2 1T1R(MT7921)
Power	Voltage Range	DC 12V input supported
	Power Input Connector	DC2.5 terminal / PD_IN Type-C
	Power Output Connector	PDOUT TypeC
Dimensions	Mechanical Dimensions	146mm122mm36mm
Environment	Opert. Temp.	0℃~60℃ (0%~90% RH, non-condensing)
Environment	Storage Temp.	-20℃~70℃
Operating System		Android13/Linux
