■ Compute

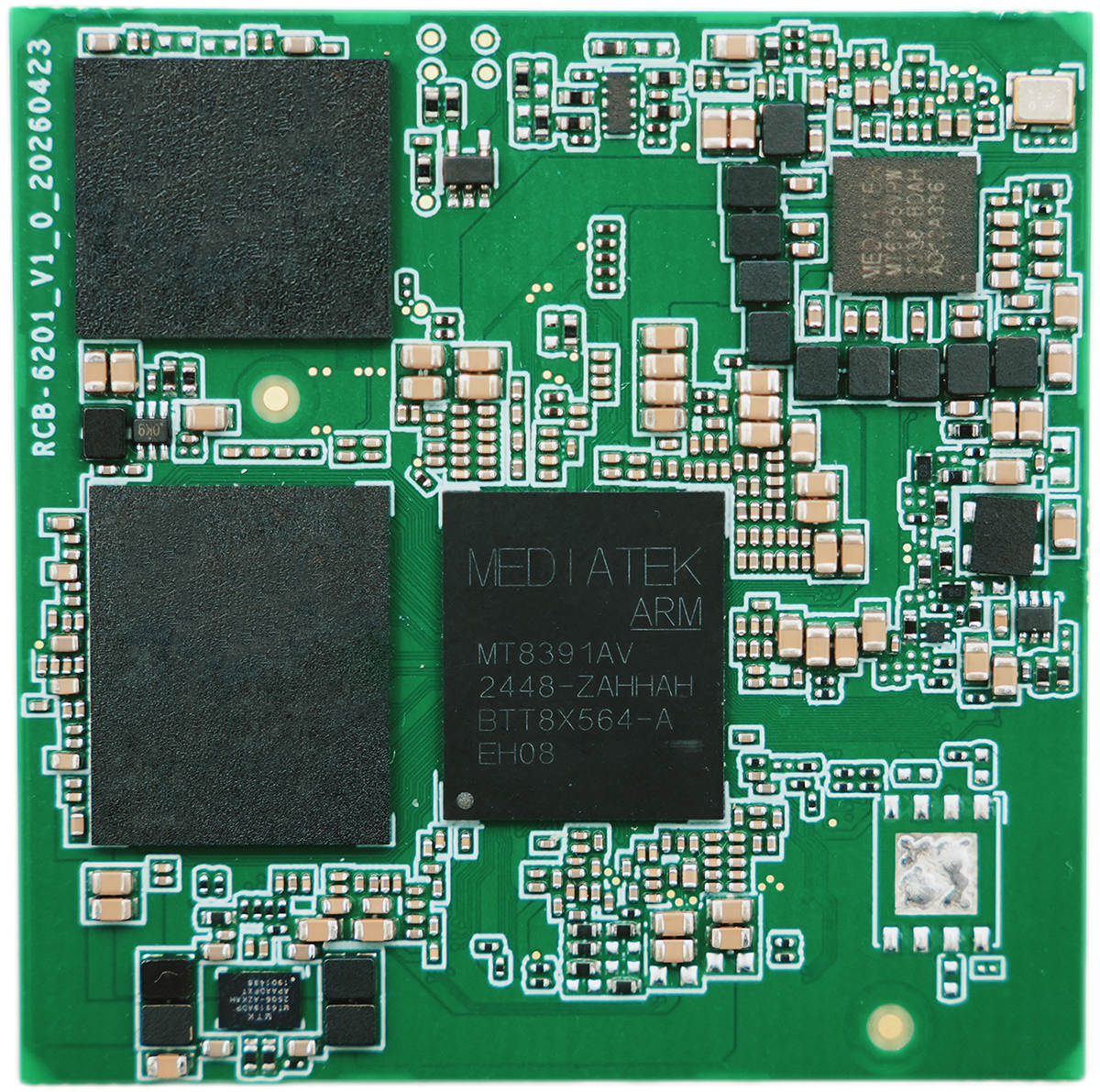

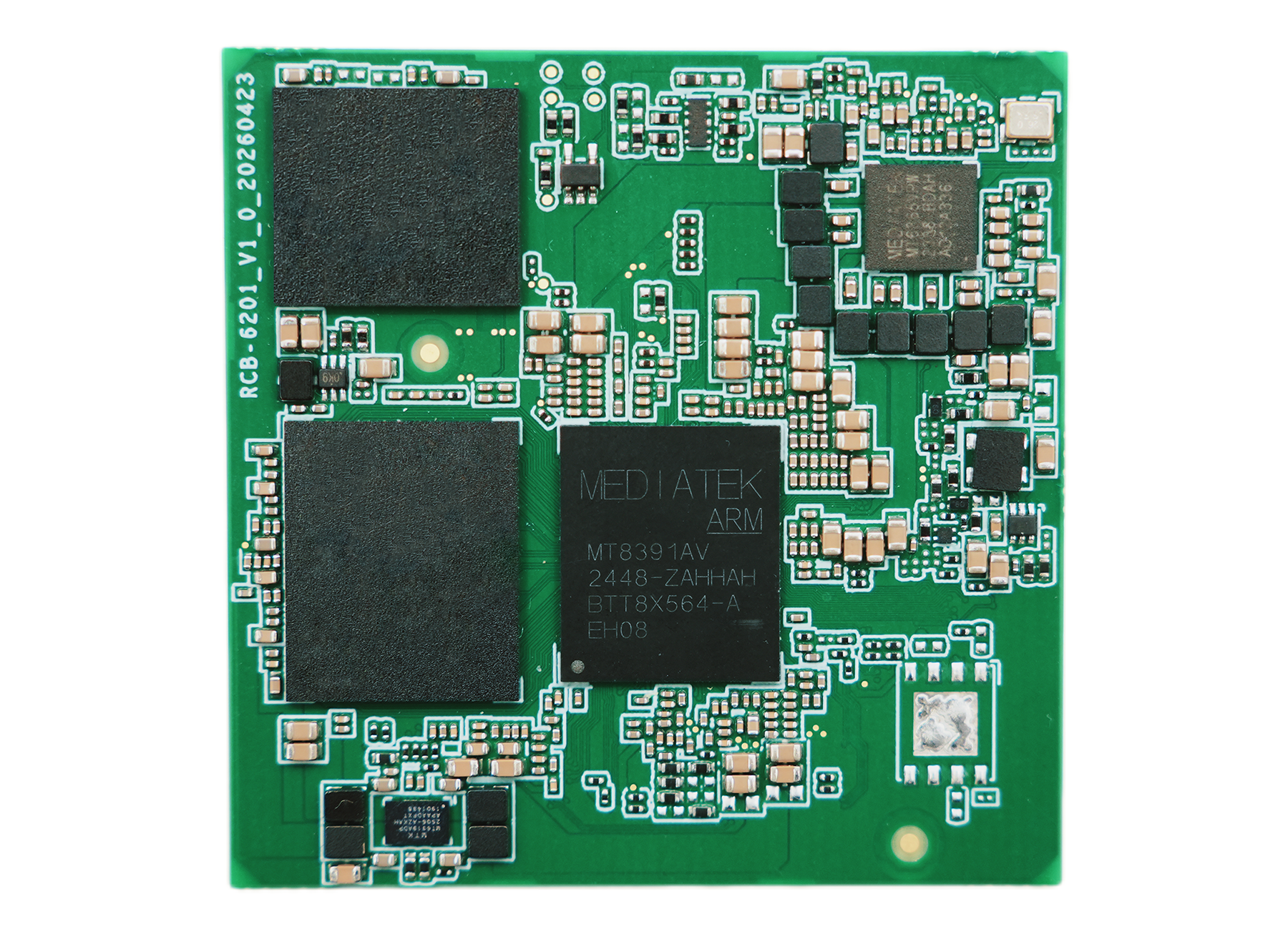

At its core, 2× Arm Cortex-A78 cores (2.4–2.6GHz) and 6× Arm Cortex-A55 cores (2.0GHz) deliver a balance of peak performance and power efficiency, with Arm Mali-G57 MC2 graphics (Vulkan 1.1) and a 10 TOPS NPU for AI acceleration. 8GB LPDDR5 and 64GB eMMC come onboard, both expandable.
■ Display & Camera
The module drives up to 5K resolution or dual screens via 2× eDP and 1× MIPI-DSI/LVDS, handles 4K HEVC encode/decode, and supports 2× 4-lane MIPI CSI camera inputs.
■ Connectivity & Expansion
A rich I/O set covers 2× USB 3.0, 3× USB 2.0, 1× PCIe Gen2, 1× RGMII Ethernet, 4× UART, plus I2C, SPI, PWM and GPIO for peripheral integration.
■ OS & Form Factor

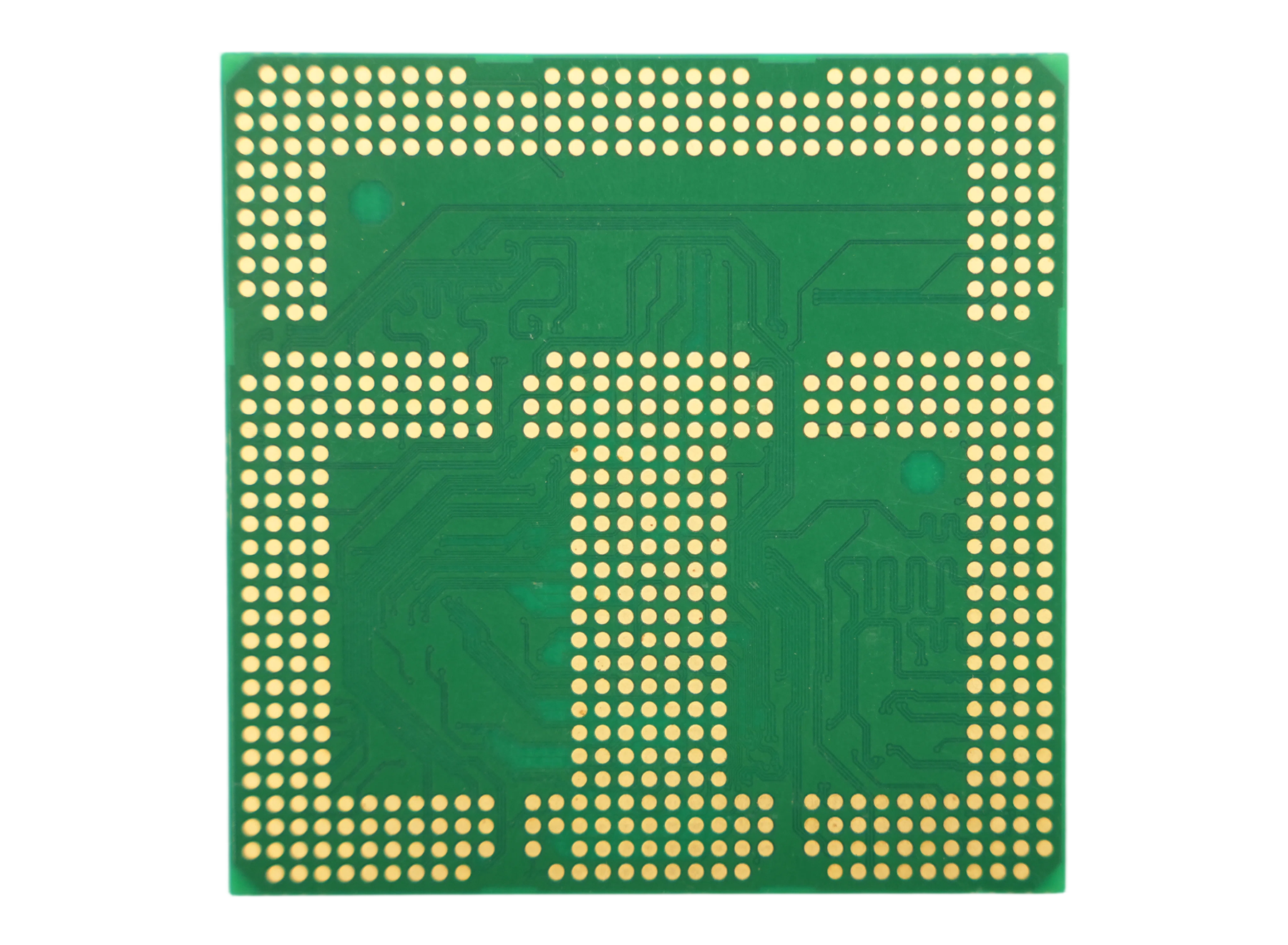

Running Android 15 or Ubuntu 22.04, the RCB-6201 follows the open-standard OSM Size-L footprint (45×45mm) and operates reliably from 0°C to 60°C.
| Model Number | LPDDR5 | eMMC | Operating Temperature |
| RCB-6201-L01 | 8GB | 64GB | 0°C to 60°C |
| Category | Item | Specification |
| Processor | CPU | MTK MT8391 (Genio 720), 2x Arm Cortex-A78 @ 2.4-2.6GHz, 6x Arm Cortex-A55 @ 2.0GHz |
| Memory | LPDDR5 | 8GB onboard, optional expansion |
| Storage | eMMC | 64GB onboard, optional expansion |
| Display | Display | 2x eDP; 1x MIPI-DSI/LVDS (1x 4-lane MIPI-DSI shared with dual-channel LVDS) |
| Camera | Camera | 2x 4-lane MIPI CSI |
| High-Speed Interfaces | USB | 2x USB 3.0 (1x OTG, 1x HOST), 3x USB 2.0 |
| PCIe Express | 1x Gen2 x1 | |
| Network Interfaces | Ethernet | 1x RGMII |
| Storage | SDIO | 2x SDIO (1x 4-bit, 1x 8-bit) |
| General Purpose I/O Interfaces | Connectivity | 2x I2C, 3x SPI, 3x PWM, 16x GPIO |
| UART | 4x UART (including 1x console port) | |
| Power Supply | Input Voltage | DC 12V |
| Dimensions | Mechanical Dimensions | OSM Size-L 45x45mm |
| Environmental | Operating Temperature | 0℃ to 60℃ (0% to 90% RH, non-condensing) |
| Storage Temperature | -20℃ to 70℃ | |
| Operating System | Android 15 / Ubuntu 22.04 | |
| Category | Interface | Quantity | Details |
| Display | eDP | 2x | Embedded DisplayPort |
| MIPI-DSI / LVDS | 1x | 1x 4-lane MIPI-DSI shared with dual-channel LVDS | |
| Camera | MIPI CSI | 2x | 4-lane |
| High-Speed Data | USB 3.0 | 2x | 1x OTG, 1x HOST |
| USB 2.0 | 3x | – | |
| PCIe Express | 1x | Gen2 x1 | |
| Network | Ethernet | 1x | RGMII |
| Storage Expansion | SDIO | 2x | 1x 4-bit, 1x 8-bit |
| General-Purpose I/O | UART | 4x | Including 1x console port |
| I2C | 2x | – | |
| SPI | 3x | – | |
| PWM | 3x | – | |
| GPIO | 16x | – |
No tag data yet
| Model Number | LPDDR5 | eMMC | Operating Temperature |
| RCB-6201-L01 | 8GB | 64GB | 0°C to 60°C |
