MDC-10813 series is a commercial display integrated machine using Rockchip four-core low-power CPURK3288 design with its own Mail-T764 GPU Excellent image processing capabilities this series can becon
| CPU | RK3288 |
| DDR | DDR3, 2GB |
| EMMC | eMMC, 8GB/16GB |
| Mini PCIe | 1*Mini PCIe ( standard 3G/4G module) |
| Wi-Fi & BT | (optional) Wi-Fi IEEE802.11b/g/n + BT4.0 |
| LVDS | 1 * 34pin 48bit LVDS connector |
| EDP | 1 * 20pin 4Lane connector |
| RS232 |
2 * RS232 connector
|
| RS485 | 1 * RS485 connector |
| USB2.0 | (reserved) 6 * internal USB2.0 connector |
| LAN | 1 * LAN RJ45 10M/100Mbps |
| HDMI | 1 * Type-A HDMI female connector |
| USB2.0 | 1 * TYPE-A USB connector |
| USB OTG | 1 * TYPE-A USB, HOST/Device selectable by jumper |
| SIM | 1 * SIM slot (drawer) |
| SD | 1 * TF slot |
|
Screen
|
10.1 inch capacitive touch screen |
|
Camera
|
(optional) Common / Wechat / Alipay |
| Audio |
1 * 3.5mm earphone
|
| LED | Indication of Power and Status |
| WDT |
1 * CPU internal Watchdog; 1 * hardware Watchdog
|
| Temperature | 0℃ - 50℃ |
| Humidity | 0-90％, non-condensing |
|
Product
|
CPU | Memory | eMMC | USB | Debug | Screen | Camera | LAN | Resolution | Power supply | Dimension (mm) |
| MDC-10813-R01 | RK3288 | 2GB | 8GB | 2*USB2.0 | 1*OTG |
10.1’’ capacitive touch screen
|
/ | 1*LAN | 1280*800 | DC 2.5 | 256*176*38.3 |
| MDC-10813-R02 | RK3288 | 2GB | 8GB | 2*USB2.0 | 1*OTG |
10.1’’ capacitive touch screen
|
/ | 1*LAN | 1280*800 | DC 2.5 | 283.5*157*32 |
| MDC-10813W-R01 | RK3288 | 2GB | 8GB | 2*USB2.0 | 1*OTG |
10.1’’ capacitive touch screen
|
1*LAN | 1280*800 | DC 2.5 | 300*176*38.3 | |

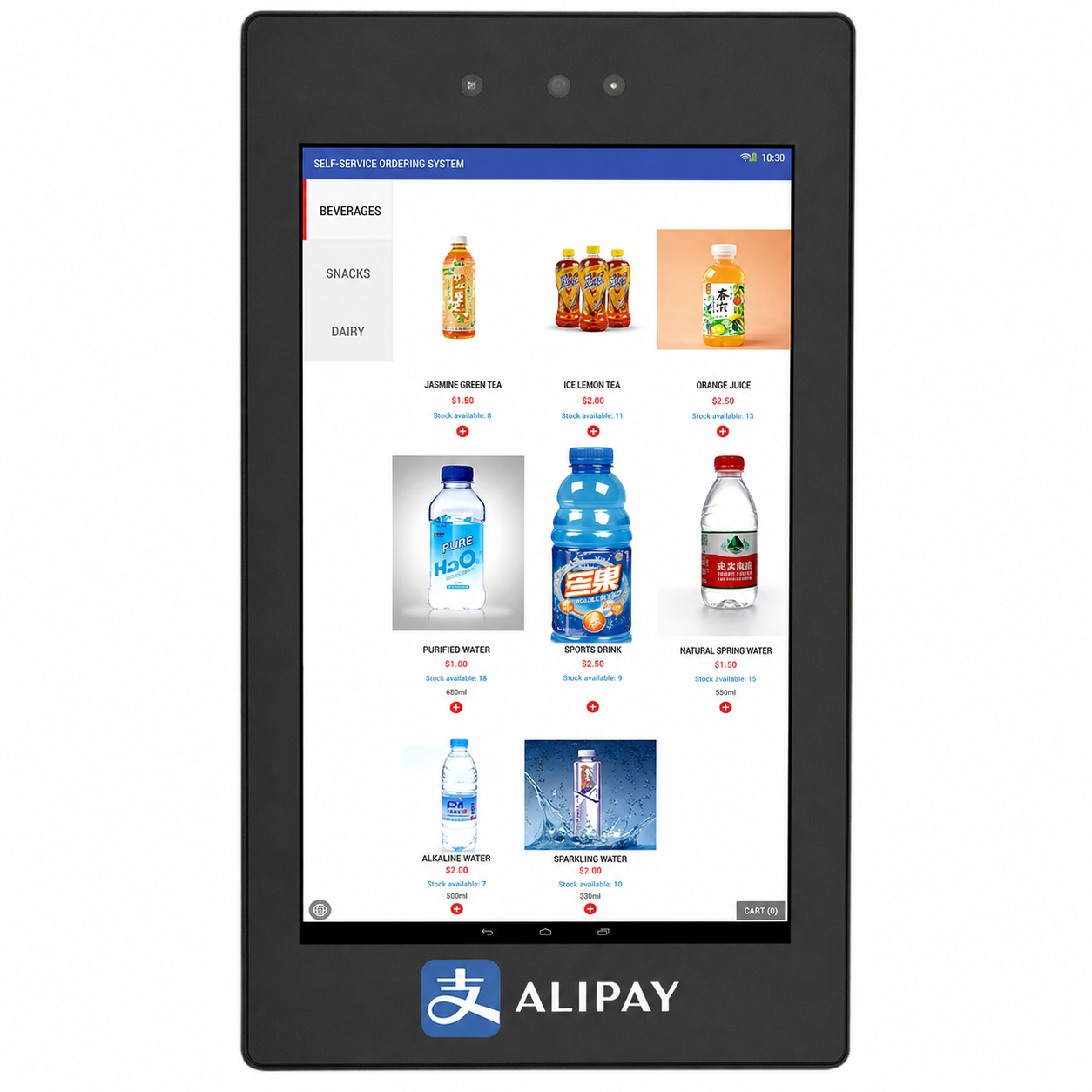

| MDC-10813Z-R01 | RK3288 | 2GB | 8GB | 2*USB2.0 | 1*OTG | 10.1’’ capacitivetouchscreen | Alipay | 1*LAN | 1280*800 | DC2.5 | 300*176*38.3 |
| Part No. | Product |
Desc |
| 02.MD.02.0002A | 4G module | 4G module single antenna supported |
| 02.MD.02.0010A | 4G module | 4G module diversity antenna supported |
| 02.MD.02.0008A | 4G module | 4G module diversity antenna GPS supported |
| 02.AT.03.0013X | 4G external antenna | 4G external antenna |
| 02.AT.01.0008X | wifi external antenna | wifi external antenna |
| 03.DY.01.0001A | Power adapter | 2.5mm DC male connector with cable |
| 02.AT.02.0002X | GPS external antenna | GPS external antenna |
