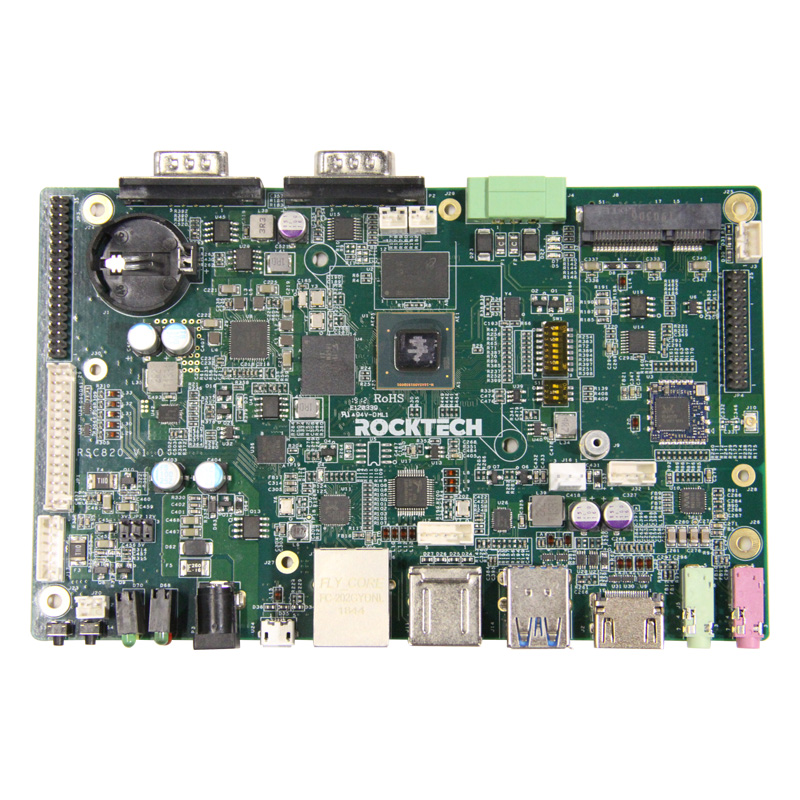

Fanless embedded high-end ARM SBC RSC-820 is an embedded industrial SBC powered by NXP i.MX8M series CPU. Featuring low power consumption and outstanding computing & graphic performance it's particula
| OS | Android 8.0 | |
| Processor | NXP i.MX8M quad core1.5GHz | |
| Memory | LPDDR4 1600MHz 1GB/2GB/4GB | |
| Storage | 8GB/16GB eMMc，TF Card | |
| Display | HDMI | 1 *standard HDMI |
| LVDS | 1 *48 bit LVDS | |
| I/O | GPIO | 6 *GPIO |
| Mini PCIe | 1*Mini PCIe（support to 3G/4Gmodules)） | |
| USB |
2*USB 3.0 Type-A，2*USB 2.0 Type-a，2*pin header in board，1*OTG Micro USB
|
|
| Audio | 1*Mic,1*Line Out | |
| UART | 2*RS232(pin header in board),1*RS485(pin header in board) | |
| SIM card | 1*Micro-SIM slot | |
| Communication ports | Ethernet | 1*10M/100M/1000M bps RJ45 |
| WiFi&BT |
1*on boarddual - frequency WiFi， with hotspot，802.11 b/g/n， BT4.2 Bluetooth audio
|
|
| 3G/4G | Mini PCIe port modules (Optional) | |
| Security feature. | Encrypted IC | |
| WDT | 1 x CPU watchdog timer, time interval is 0 ~ 128 second, 1 x external watchdog timer | |
| Power supply | Input voltage range | 12V DC,over voltage/over current protection, reverse connecting protection |
| Dimension | Mechanical dimension | 160mm（L）* 100mm（W） |
| Environment | Operating temperature | Commercial grade can be extended -20℃-70℃ |
| Operating humidity | 0%~90%non-condensing | |
